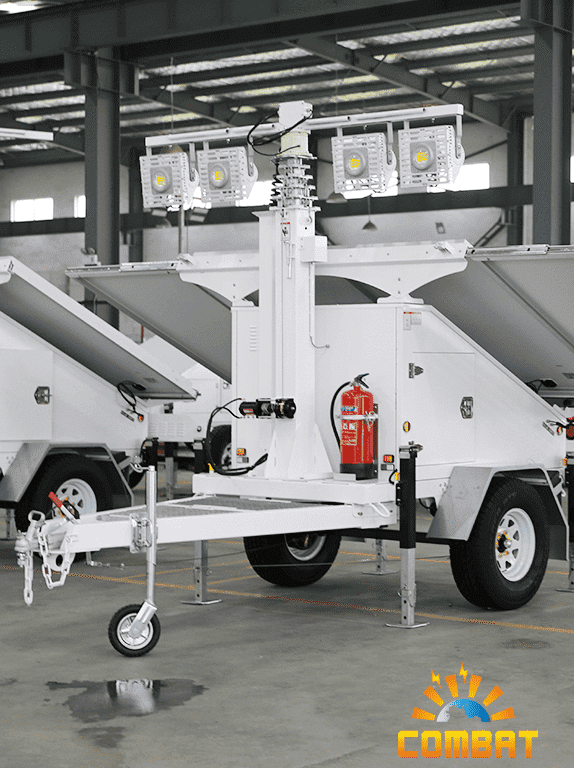

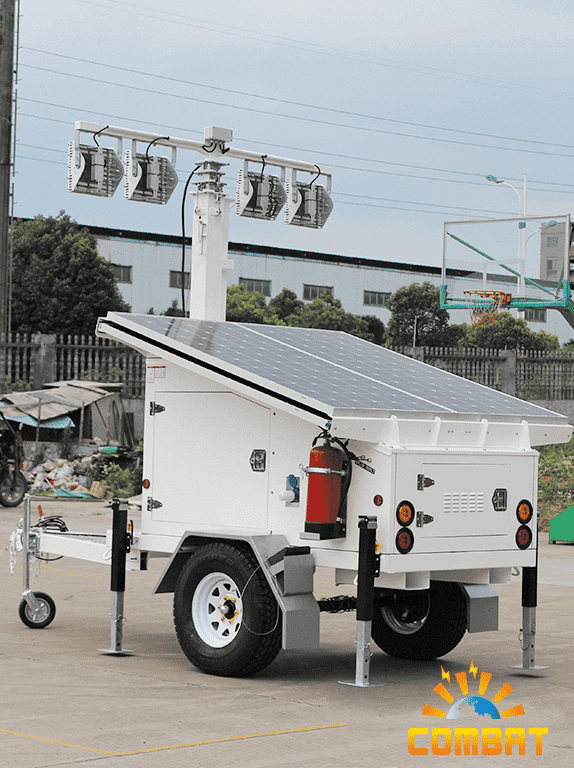

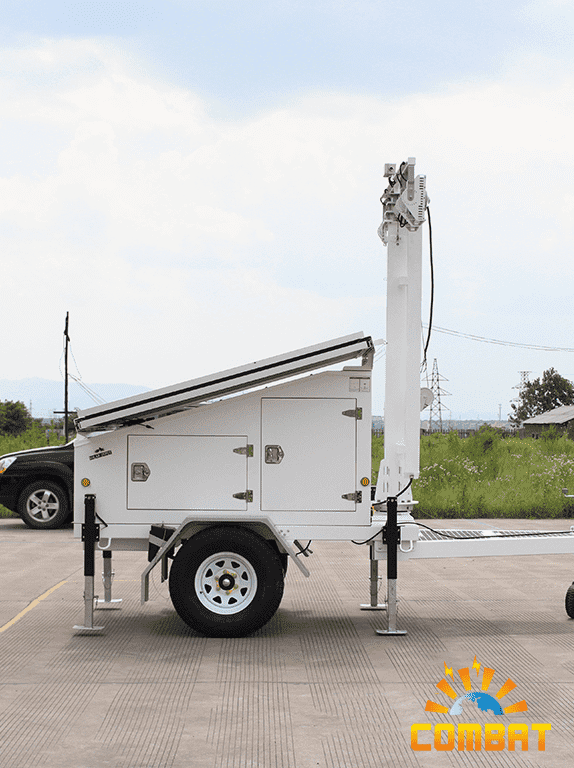

Mobile Solar Light Tower MTS1200A-L
Product Feature:
1. 4*450W solar panels
2. 4*200Ah/6*150Ah/ 8*150Ah gel batteries,DC24V/48V system
3. 4*60W/4*100W/6*100W LED light
4. Optional 6 to 9 meters manuTower Dimensions
Length: 4100mm
Width: 2100mm
Height: 2750mm
Weight: 1480kgal/electric/ hydraulic mast
5. Single axle solar light tower with Australia/ Europe/North America standard
Share this :
Tech Specs
Gallery
Tower Dimensions
| Length: | 4100mm |
| Width: | 2100mm |
| Height: | 2750mm |
| Weight: | 1480kg |
Equipment Details
| Axle No.: | Single Axle |
| Tire and Rim Size: | 15″ |
| Stabalizer
Supports: |
4xManual |
| Drawbar: | A Frame |
| Tow Hitch: | 50mm Ball/ 70mm Ring |
| Working Temperature(℃): | -35 – 60 |
| Color: | Customized |
Lighting Fixture Details
| Type of Lights: | LED |
| Lamp Wattage: | 60/100W |
| No. of lights: | 4/6 |
| Light Output(W): | 240/400/600 |
| Lumens per Watt: | 110 |
| Total Lumens(kW): | 22/44/66 |
| Mast Raise/
Extension: |
Manual/Electric/ Hydraulic |
| Mast Height(m): | Optional |
| Mast Rotation: | 360 Degrees |
| Wind Rating Speed: | 100km/h |
| Working Lifetime(h): | 50000 |
| Coil Cable: | 1*cat5e +4*AWG13 |
