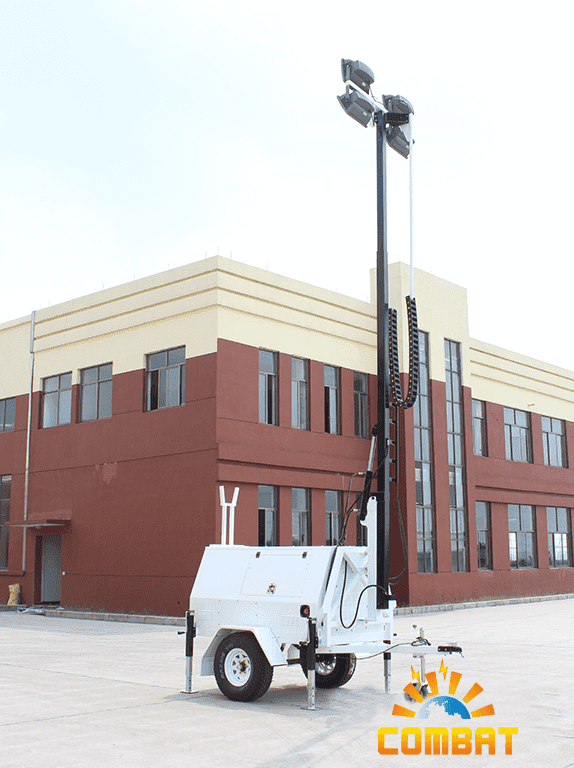

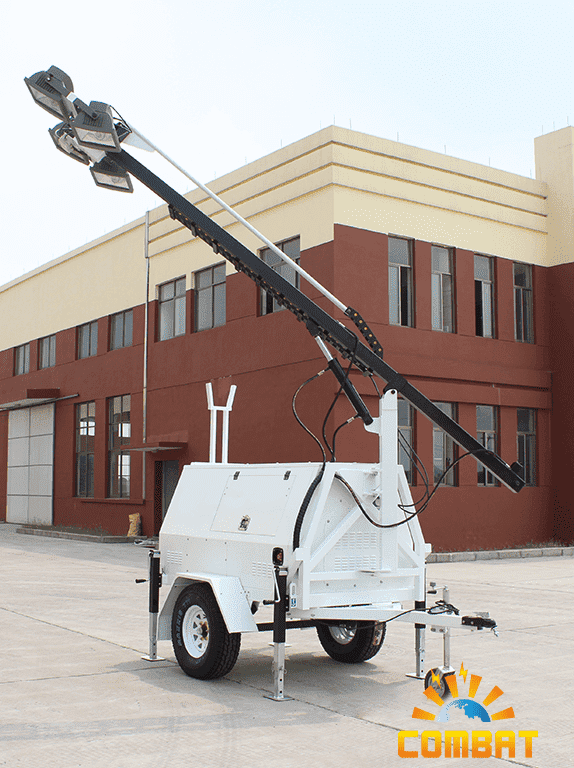

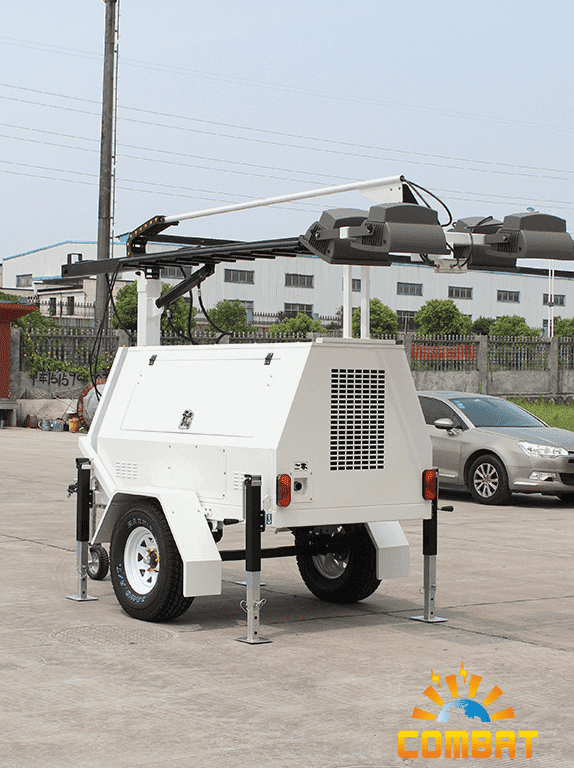

Mobile Lighting Tower MTS4K-A
Product Feature:
1. 4×1000W halogen flood light
2. Optional 7.5/9 meters hydraulic mast
3. Perkins/Kubota/Yanmar/FAW engines are available
4. 4 pole single bearing,single phase/three phase 50/60 HZ alternator
5. Widely used in construction,mining site,square,airport etc
Share this :
Tech Specs
Gallery
Tower Dimensions
| Length: | 4900mm |
| Width: | 1830mm |
| Height: | 2250mm |
| Weight: | 1350kg |
Equipment Details
| Fuel: | Diesel |
| Engine: | Perkins/Kubota/ Yanmar/FAW |
| Alternator: | 4 pole single bearing |
| Hz: | 50/60 |
| Axle No.: | Single Axle |
| Tire and Rim Size: | 15″ |
| Stabalizer Supports: | 4xManual |
| Drawbar: | A Frame |
| Tow Hitch: | 50mm Ball/ 70mm Ring |
| Color: | Customized |
Light Details
| Material of Lights: | Metal Halide |
| Lamp Wattage: | 1000W |
| No. of lights: | 4 |
| Lumens per Watt: | 100 |
| Light Output in kW: | 4 |
| Mast Raise/Extension: | Hydraulic |
| Mast Height(m): | 7.5/9 |
| Mast Rotation: | 360 Degrees |
| Wind Rating Speed: | 100km/h |
